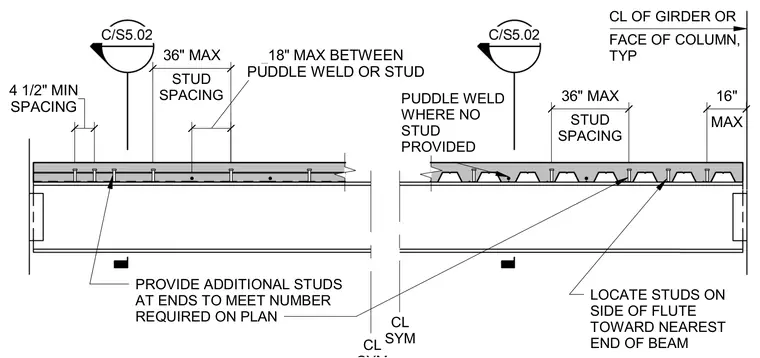

Metal deck spans perpendicularly across a supporting steel beam and fastens using shear studs and puddle welds. Shear studs anchor through the metal deck into the top flange of the beam with a maximum spacing of thirty-six inches, located on the side of the flute toward the nearest end of the beam. Puddle welds secure the deck where no stud is provided, spaced a maximum of eighteen inches apart. Additional studs are placed at the beam ends to meet the quantity required on the structural plan.
STUD SPACING STUD SPACING CL OF GIRDER OR FACE OF COLUMN, TYP PUDDLE WELD WHERE NO STUD PROVIDED CL CL SYM PROVIDE ADDITIONAL STUDS AT ENDS TO MEET NUMBER REQUIRED ON PLAN LOCATE STUDS ON SIDE OF FLUTE TOWARD NEAREST END OF BEAM 36" MAX MAX 16" SPACING 4 1/2" MIN 36" MAX PUDDLE WELD OR STUD 18" MAX BETWEEN
