Continuous reinforcement runs straight through the control joint with no splices permitted within two feet of the joint. The slab features a bullnose edge at the joint and a roughened slab edge profile. Subgrade preparation and slab thickness follow typical project details.

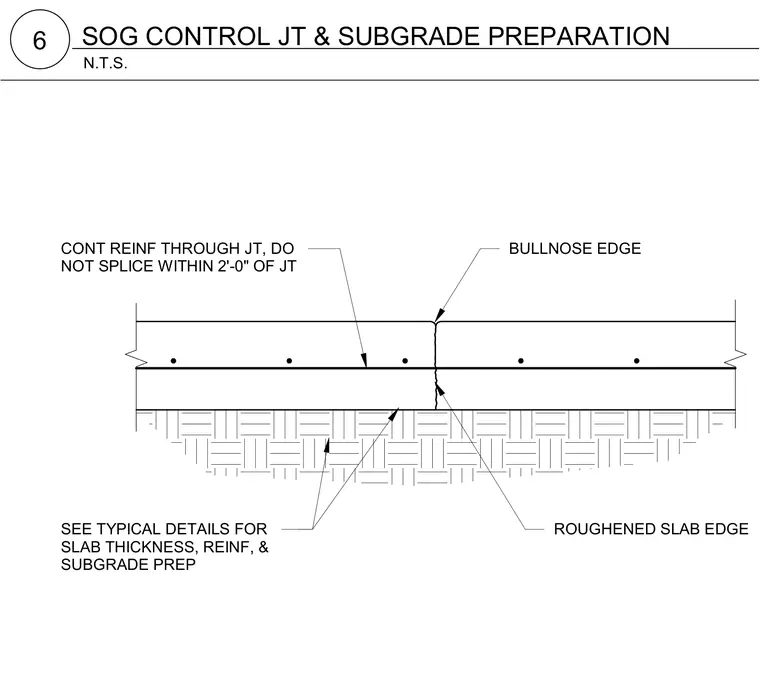

BULLNOSE EDGE CONT REINF THROUGH JT, DO NOT SPLICE WITHIN 2'-0" OF JT SEE TYPICAL DETAILS FOR SLAB THICKNESS, REINF, & SUBGRADE PREP ROUGHENED SLAB EDGE N.T.S. 6 SOG CONTROL JT & SUBGRADE PREPARATION
