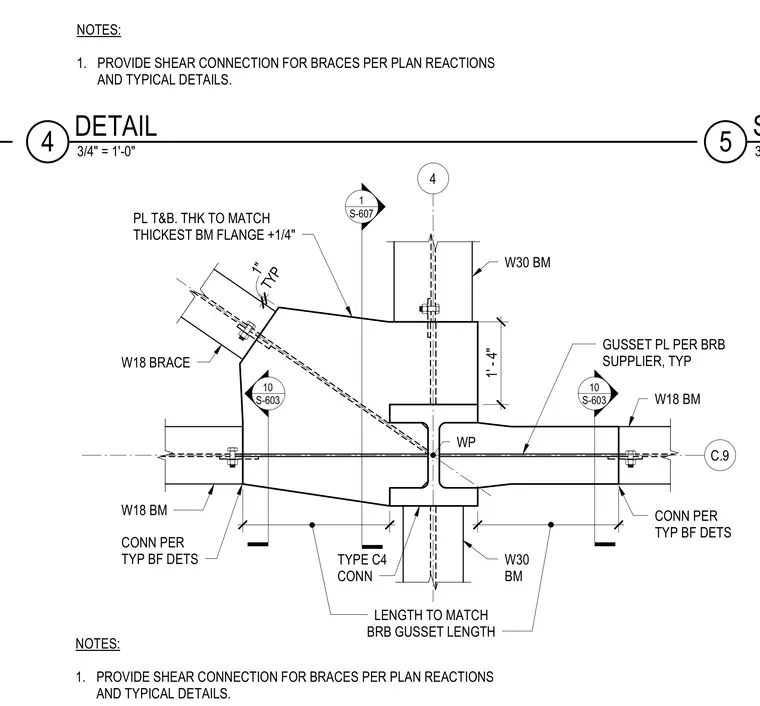

A buckling-restrained brace connects at a W30 beam and column junction. The assembly incorporates a W18 brace framing into a gusset plate, with top and bottom plates sized to match the thickest beam flange plus one-quarter inch. A W18 beam connects to the column line using a Type C4 connection per typical details. Gusset plates are provided per the brace supplier requirements with a length matching the buckling-restrained brace gusset length. Shear connections for the braces are provided per plan reactions and typical details.
NOTES: 1. PROVIDE SHEAR CONNECTION FOR BRACES PER PLAN REACTIONS AND TYPICAL DETAILS. 4 C.9 W30 BM PL T&B. THK TO MATCH THICKEST BM FLANGE +1/4" W18 BRACE W18 BM CONN PER TYP BF DETS W30 BM TYPE C4 CONN GUSSET PL PER BRB SUPPLIER, TYP 1' - 4" CONN PER TYP BF DETS W18 BM NOTES: 1. PROVIDE SHEAR CONNECTION FOR BRACES PER PLAN REACTIONS AND TYPICAL DETAILS. WP LENGTH TO MATCH BRB GUSSET LENGTH TYP 1" 10 S-603 10 S-603 1 S-607 3/4" = 1'-0" 4 DETAIL 3/4" = 1'-0" 5 SECTION
