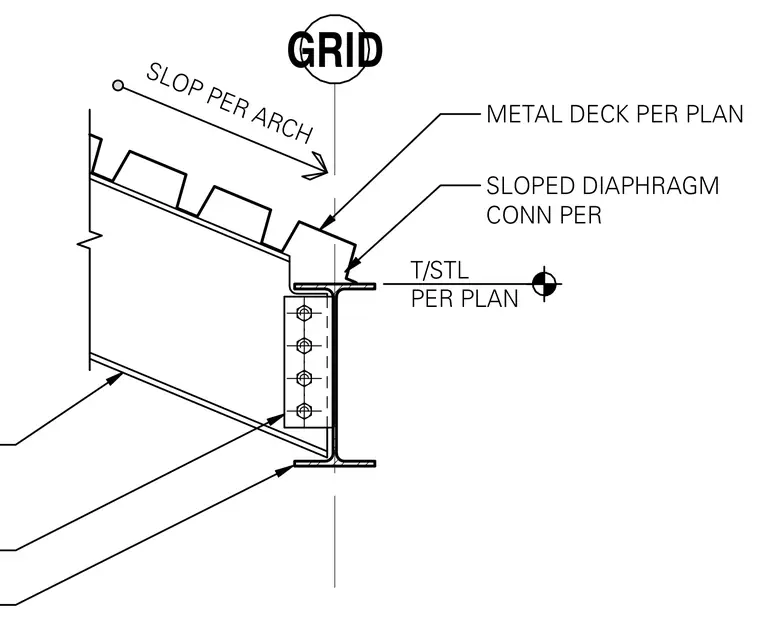

A metal deck bears on a structural steel member with a sloped diaphragm connection per plan. The top of steel elevation is located relative to the architectural grid line. The slope is coordinated per architectural drawings.
