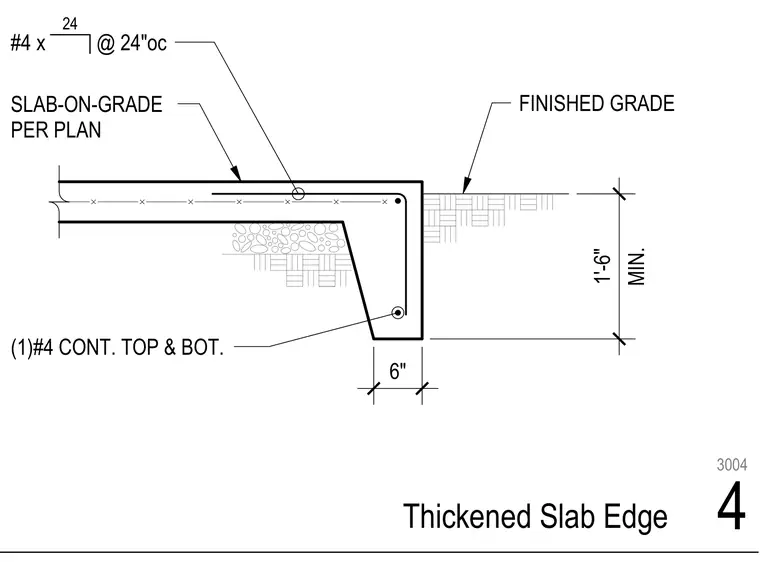

A slab-on-grade concrete floor transitions to a thickened edge supported by subgrade material. The edge features a minimum depth of one foot six inches and a width of six inches at the base. Reinforcement consists of one continuous number four rebar at the top and bottom, combined with number four bars spaced at twenty-four inches on center. Finished grade meets the exterior face of the thickened concrete edge.
24 FINISHED GRADE (1)#4 CONT. TOP & BOT. #4 x @ 24"oc SLAB-ON-GRADE PER PLAN MIN. 1'-6" 6" 4 Thickened Slab Edge 3004
