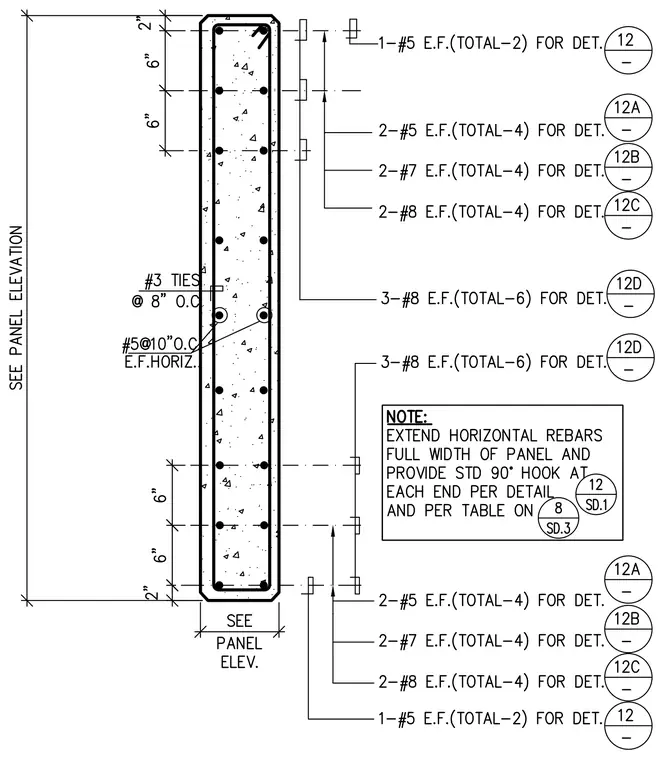

A reinforced concrete lintel section displays symmetrical vertical reinforcing bars ranging from number five to number eight bars each face, tied with number three ties at eight inches on center. Horizontal reinforcing consists of number five bars at ten inches on center each face. The vertical dimensions segment the section into two-inch top and bottom clear covers with six-inch increments between bar layers. Horizontal rebars extend the full width of the panel with standard ninety-degree hooks at each end per referenced details and tables.
