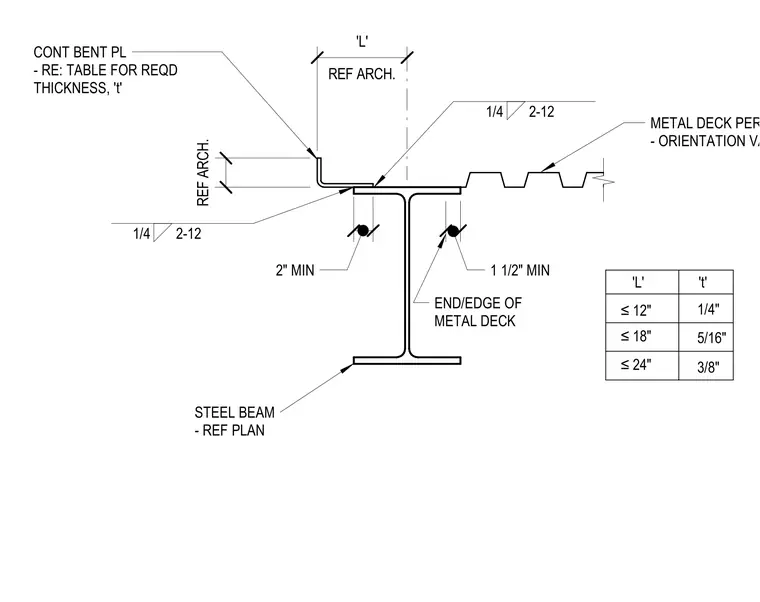

A continuous bent plate is welded to the top flange of a steel beam as an edge form for the metal deck. Bent plate thickness is determined by dimension 'L' per the provided table, ranging from 1/4 inch to 3/8 inch. The plate is secured to the beam flange with 1/4 inch fillet welds at 12 inches on center. Metal deck terminates at the beam with a minimum bearing of 1 1/2 inches on the interior side and 2 inches on the exterior side, as referenced by architectural drawings.
1/4 2-12 CONT BENT PL - RE: TABLE FOR REQD THICKNESS, 't' 'L' 't' ≤ 12" ≤ 18" ≤ 24" 1/4" 5/16" 3/8" REF ARCH. REF ARCH. 'L' 2" MIN 1 1/2" MIN STEEL BEAM - REF PLAN END/EDGE OF METAL DECK METAL DECK PER SCHEDULE - ORIENTATION VARIES 1/4 2-12
