Structural · S-PQB4B

Circular Concrete Column Sections with Spiral Reinforcement

Materials

About this detail

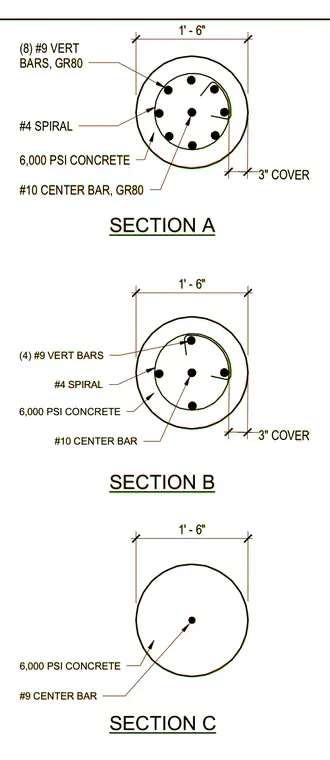

Three circular concrete column cross-sections featuring six thousand PSI concrete with a diameter of one foot six inches and three inches of concrete cover. Section A utilizes eight number nine vertical bars in grade 80 steel, a number four spiral tie, and a number ten center bar in grade 80 steel. Section B contains four number nine vertical bars, a number four spiral tie, and a number ten center bar. Section C consists of plain concrete with a single number nine center bar.
