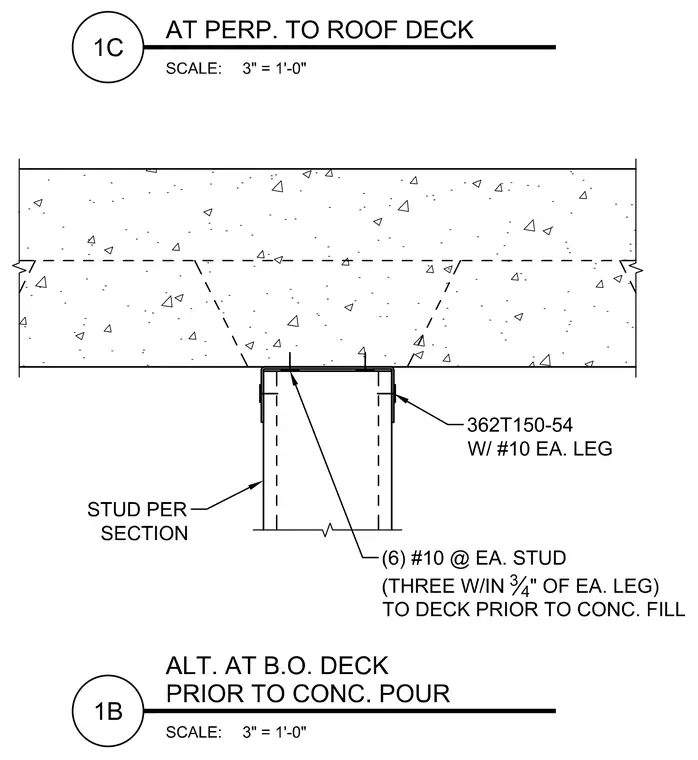

A cold-formed metal framing track designated as 362T150-54 connects to a concrete roof deck using number 10 screws on each leg. Six number 10 screws fasten each stud, with three located within three-quarters of an inch of each leg to the deck prior to concrete fill. A stud per section frames into the track assembly.
