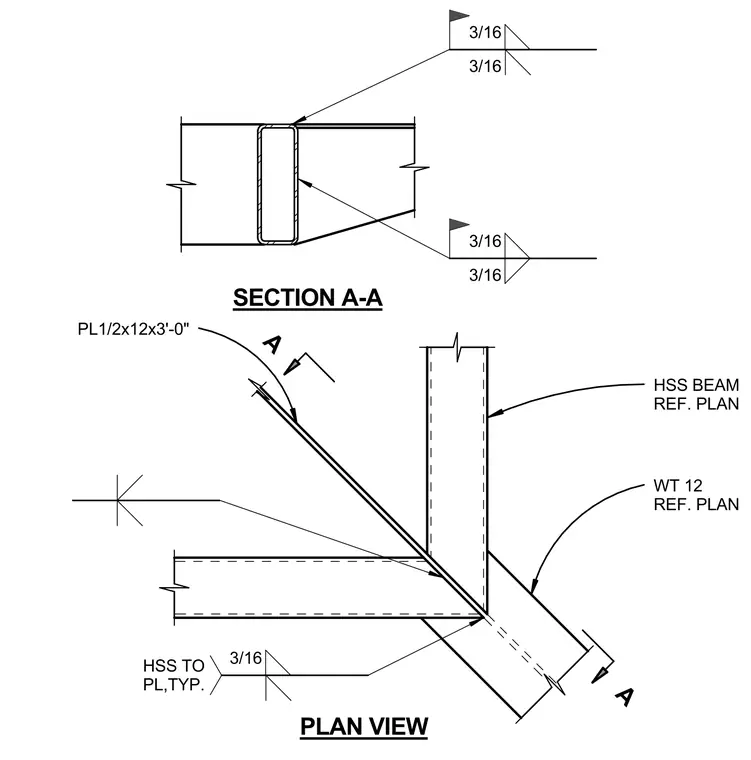

A hollow structural section beam and a structural tee member, designated as WT 12 referenced per plan, frame into a half-inch by twelve-inch by three-foot plate. The connection is secured with three-sixteenth-inch typical fillet welds between the hollow structural section and the plate.
3/16 3/16 3/16 3/16 HSS BEAM REF. PLAN WT 12 REF. PLAN 3/16 HSS TO PL,TYP. SECTION A-A PL1/2x12x3'-0" PLAN VIEW A A
