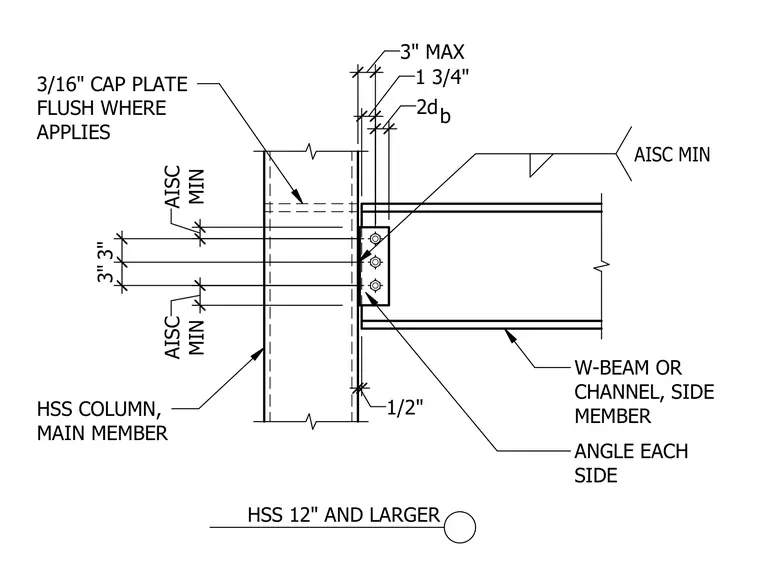

A side connection between a wide-flange beam or channel side member and a main hollow structural section column of 12 inches and larger utilizes angles on each side bolted to the web of the side member and the face of the column. A 3/16-inch cap plate is positioned flush inside the HSS column where applicable. Minimum American Institute of Steel Construction clearances and edge distances govern the bolt pattern and weld sizing.
3" 3" 3" MAX 1 3/4" 2d MIN AISC MIN AISC b W-BEAM OR CHANNEL, SIDE MEMBER AISC MIN 3/16" CAP PLATE FLUSH WHERE APPLIES HSS COLUMN, MAIN MEMBER ANGLE EACH SIDE 1/2" HSS 12" AND LARGER
