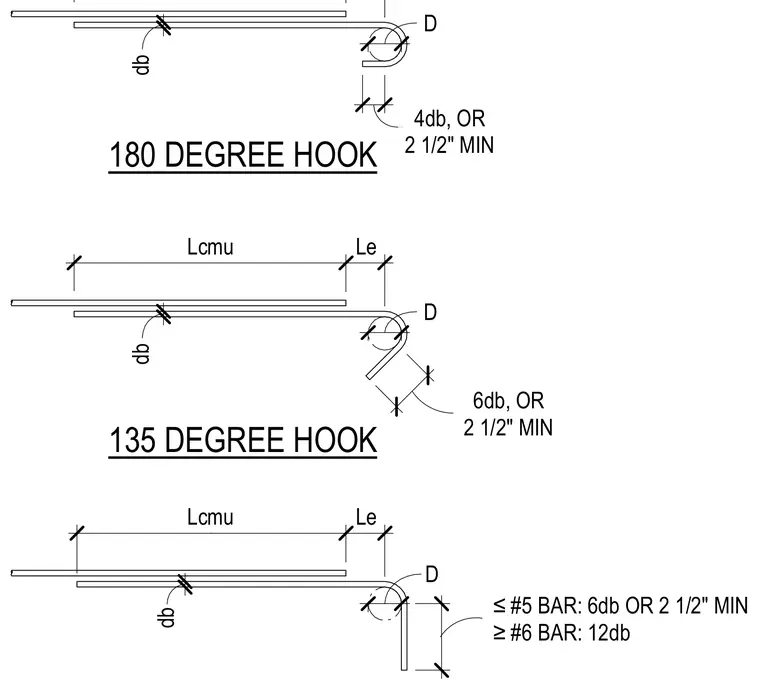

Concrete masonry unit reinforcing bar development lengths and hook configurations including 180-degree hooks, 135-degree hooks, and standard bends. Tail extension lengths are specified as four bar diameters or two and a half inches minimum for 180-degree hooks, and six bar diameters or two and a half inches minimum for 135-degree hooks. Embedment lengths are dimensioned using development length variables for masonry walls alongside lap splice dimensions.
1" 12" 6" db D 4db, OR 2 1/2" MIN db 180 DEGREE HOOK 6" db D 4db, OR 2 1/2" MIN 48 1/2" 7" Lcmu Le 8" db 135 DEGREE HOOK 6" db D 6db, OR 2 1/2" MIN 49" 7" Lcmu Le ≤#5 BAR: 6db OR 2 1/2" MIN ≥#6 BAR: 12db
