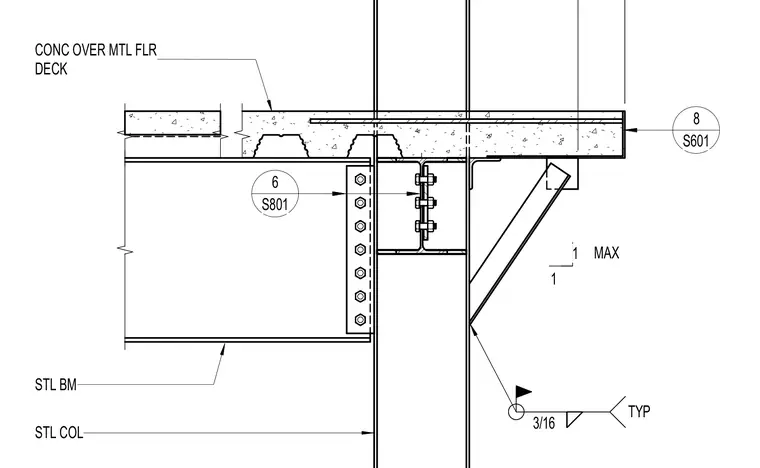

A concrete slab over metal floor deck frames around a steel column flange. Structural steel beams connect to the column web and flange with bolted shear connections. A diagonal kickers support the slab edge, joined to the column with a 3/16-inch typical fillet weld. The assembly integrates the floor diaphragm with the primary vertical steel framing.
