Typical Housekeeping Pad at Metal Deck and Concrete

Materials

Concrete Reinforced Concrete Steel Metal (misc.)

Elements

Beams Walls Roofs Floors / Slabs Decks Insulation Site / Paving Anchors / Embeds Reinforcing Roof / Floor Openings

Connections

Welded Connection Shear Stud / Composite Rebar Splice / Development Deck Attachment

About this detail

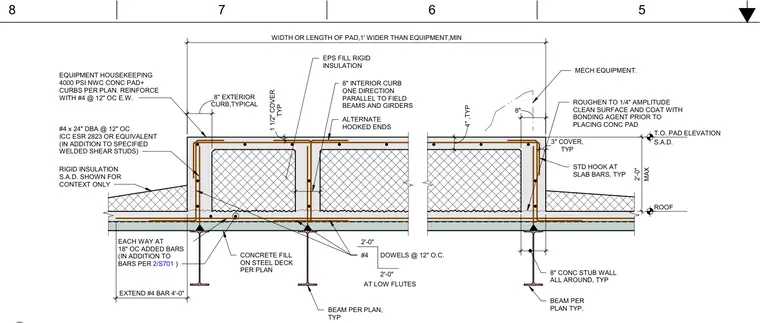

An equipment housekeeping pad is constructed from 4000 psi normal weight concrete, reinforced with number 4 bars at 12 inches on center each way. The pad bears on concrete fill over metal deck supported by structural steel beams per plan, with number 4 dowels at 12 inches on center and number 4 by 24 inch dowel bar anchors at 12 inches on center. The assembly includes expanded polystyrene fill rigid insulation and an eight inch exterior curb with standard hooked slab reinforcing bars. The underlying concrete surface is roughened to one-quarter inch amplitude, cleaned, and coated with a bonding agent prior to placing the concrete pad.
