Standard single and double curtain vertical rebar and horizontal tie configurations for concrete tilt-up wall panel jambs. The single curtain jamb incorporates vertical jamb reinforcement with standard hooks at each end alternating direction, spaced equally across the jamb width per the schedule. The double curtain jamb includes reinforced faces with vertical bars at each face and cross ties spaced at twelve inches on center unless noted otherwise. Optional chamfers or reveals occur at the panel edges where indicated, with typical panel reinforcement continuing into the wall assembly per the concrete tilt-up reinforcement schedule.

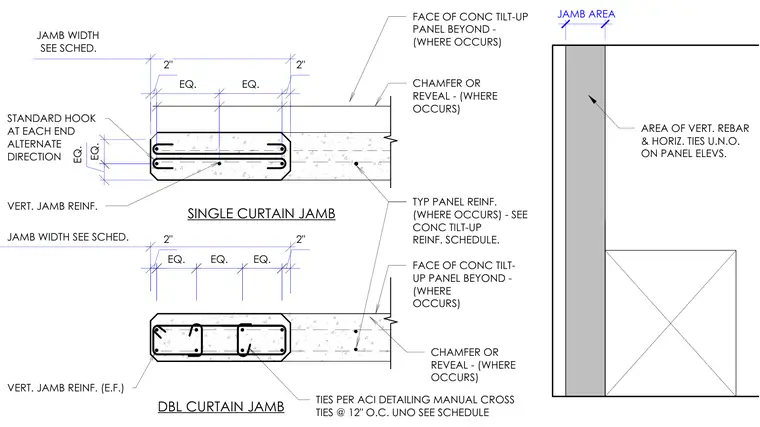

DBL CURTAIN JAMB SINGLE CURTAIN JAMB EQ. 2" 2" EQ. EQ. JAMB WIDTH SEE SCHED. 2" EQ. EQ. EQ. EQ. 2" JAMB WIDTH SEE SCHED. AREA OF VERT. REBAR & HORIZ. TIES U.N.O. ON PANEL ELEVS. VERT. JAMB REINF. (E.F.) VERT. JAMB REINF. FACE OF CONC TILT- UP PANEL BEYOND - (WHERE OCCURS) CHAMFER OR REVEAL - (WHERE OCCURS) TYP PANEL REINF. (WHERE OCCURS) - SEE CONC TILT-UP REINF. SCHEDULE. CHAMFER OR REVEAL - (WHERE OCCURS) FACE OF CONC TILT-UP PANEL BEYOND - (WHERE OCCURS) STANDARD HOOK AT EACH END ALTERNATE DIRECTION TIES PER ACI DETAILING MANUAL CROSS TIES @ 12" O.C. UNO SEE SCHEDULE JAMB AREA
