Beam Web Penetration Schedule

Materials

Steel

Elements

Beams Floors / Slabs Connections / Plates Roof / Floor Openings

Connections

Shear Stud / Composite

About this detail

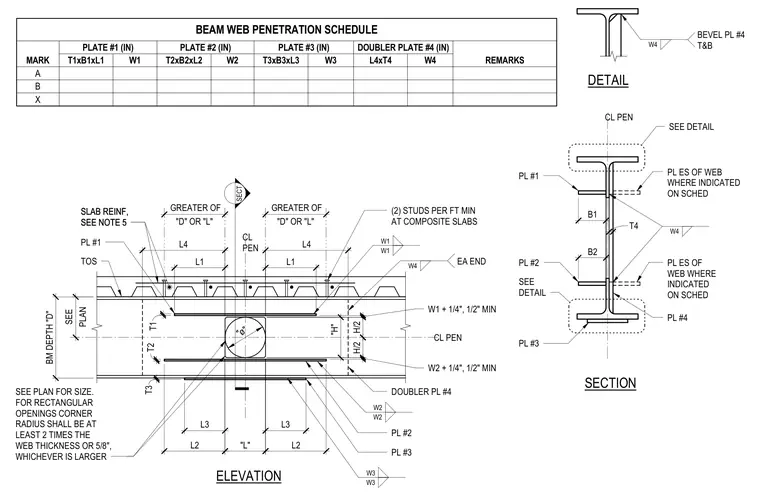

Steel beam web penetration assembly showing reinforcing plates, doubler plates, and composite slab shear studs. Rectangular openings require corner radii of at least two times the web thickness or five-eighths of an inch, whichever is larger. Reinforcement sizing and plate dimensions are governed by the schedule marks and beam depth indicated on plan. Fillet and bevel welds secure the top, bottom, and side reinforcing plates to the beam web.
