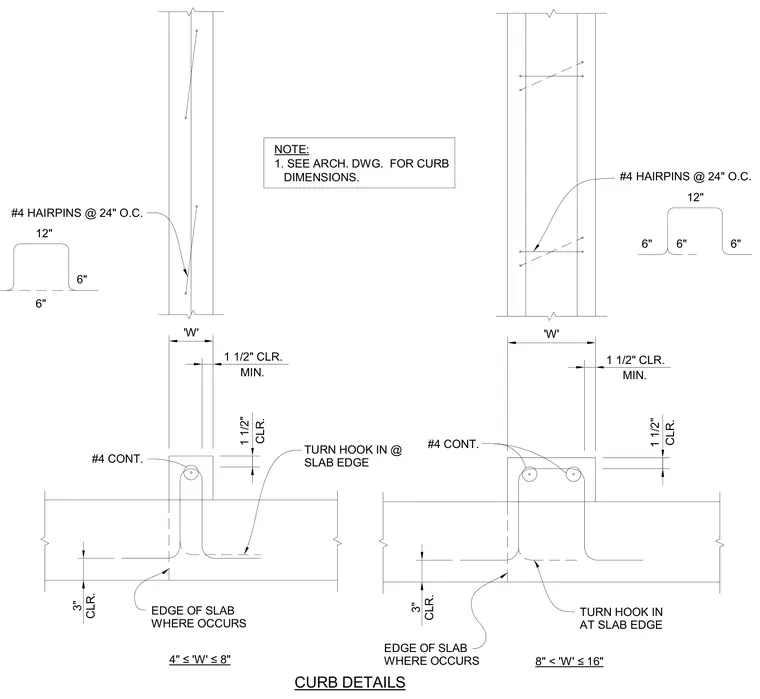

Concrete slab edge curbs feature reinforcing steel configurations for varying curb widths. The left detail includes a curb for widths between four and eight inches, reinforced with one continuous number four bar, number four hairpins spaced at twenty-four inches on center, and a turn hook into the slab edge. The right detail includes a wider curb for widths between eight and sixteen inches, reinforced with two continuous number four bars and associated hairpins. Minimum clearances of one and one-half inches and three inches are maintained throughout the assembly. General notes direct the builder to architectural drawings for specific curb dimensions.
1 1/2" CLR. 1 1/2" CLR. MIN. 'W' #4 CONT. 12" 6" #4 HAIRPINS @ 24" O.C. 'W' #4 CONT. 12" 6" 6" #4 HAIRPINS @ 24" O.C. 6" TURN HOOK IN AT SLAB EDGE CURB DETAILS 3" CLR. 6" NOTE: 1. SEE ARCH. DWG. FOR CURB DIMENSIONS. TURN HOOK IN @ SLAB EDGE EDGE OF SLAB WHERE OCCURS 4" ≤ 'W' ≤ 8" 8" < 'W' ≤ 16" EDGE OF SLAB WHERE OCCURS 3" CLR. 1 1/2" CLR. 1 1/2" CLR. MIN.
