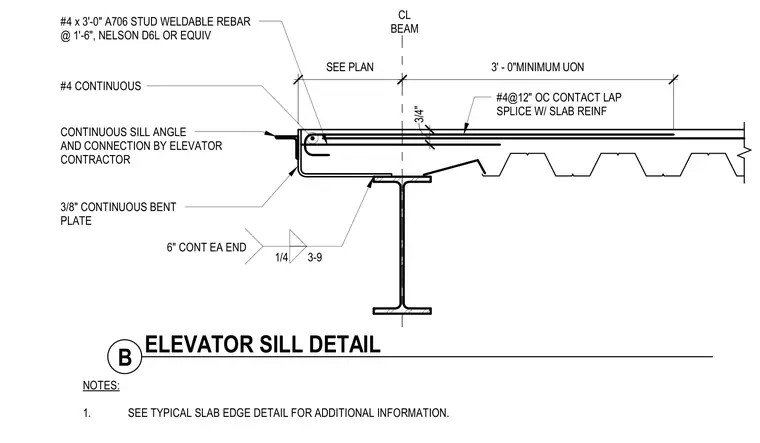

An elevator sill detail features a continuous bent plate anchored to a structural steel beam supporting a concrete slab on metal deck. A continuous sill angle and connection is provided by the elevator contractor. Reinforcing includes number 4 stud weldable rebar at one foot six inches on center, number 4 continuous rebar, and number 4 rebar at twelve inches on center for contact lap splicing with slab reinforcement. A one-quarter inch fillet weld attaches the bent plate to the steel beam continuously at each end.
NOTES: 1. SEE TYPICAL SLAB EDGE DETAIL FOR ADDITIONAL INFORMATION. #4 x 3'-0" A706 STUD WELDABLE REBAR @ 1'-6", NELSON D6L OR EQUIV 3/8" CONTINUOUS BENT PLATE CONTINUOUS SILL ANGLE AND CONNECTION BY ELEVATOR CONTRACTOR CL BEAM SEE PLAN 3/4" 3' - 0"MINIMUM UON #4@12" OC CONTACT LAP SPLICE W/ SLAB REINF #4 CONTINUOUS 1/4 3-9 6" CONT EA END B ELEVATOR SILL DETAIL
