A hollow structural section steel column rests on a twelve-millimetre-thick baseplate offset from the centre of the column with steel shims at the ends. Ten-millimetre-thick stiffener plates are provided typically. Twenty-four PT_H ten-by-one-hundred fasteners with a sixty-millimetre minimum embedment are installed in pre-drilled holes into the cross-laminated timber floor panel. A continuous glulam beam runs below, alongside a drag strap positioned per plan.

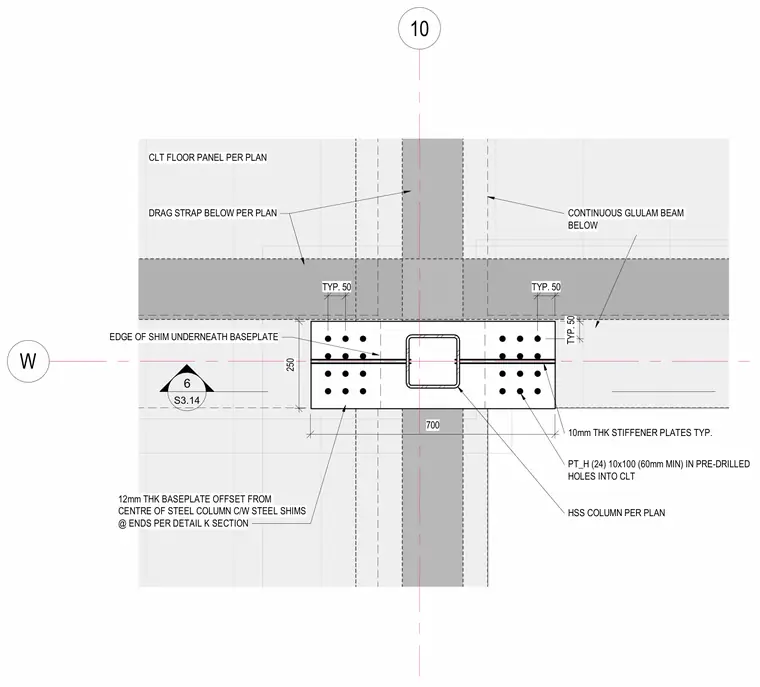

10 W S3.14 6 250 700 PT_H (24) 10x100 (60mm MIN) IN PRE-DRILLED HOLES INTO CLT TYP. 50 TYP. 50 TYP. 50 12mm THK BASEPLATE OFFSET FROM CENTRE OF STEEL COLUMN C/W STEEL SHIMS @ ENDS PER DETAIL K SECTION CLT FLOOR PANEL PER PLAN DRAG STRAP BELOW PER PLAN CONTINUOUS GLULAM BEAM BELOW HSS COLUMN PER PLAN 10mm THK STIFFENER PLATES TYP. EDGE OF SHIM UNDERNEATH BASEPLATE
