Existing wood struts frame into the existing ridge with Simpson A35 framing anchors secured to each side. The existing wood members remain in place at the roof ridge intersection.

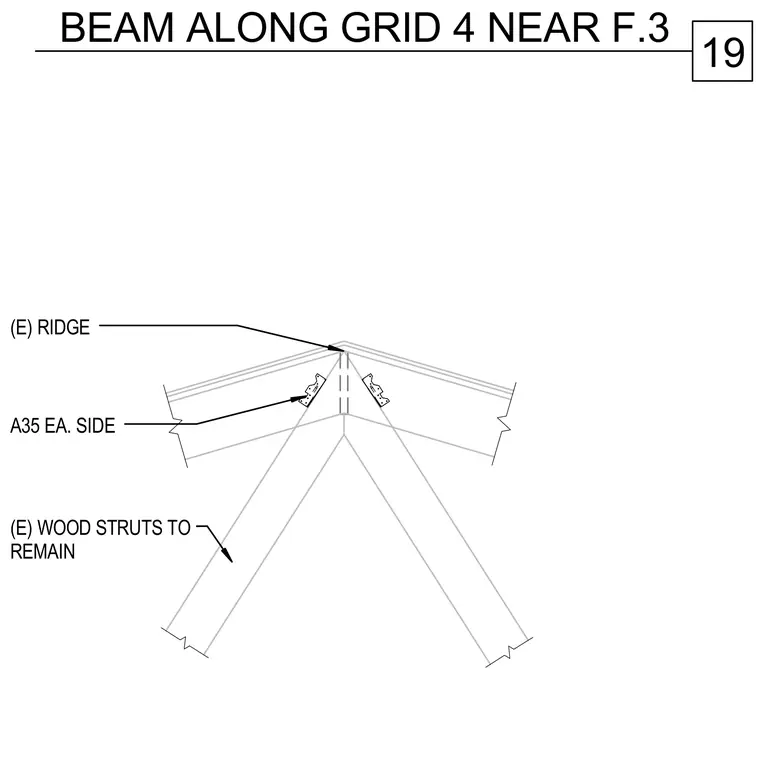

(E) RIDGE (E) WOOD STRUTS TO REMAIN A35 EA. SIDE 19 BEAM ALONG GRID 4 NEAR F.3
