A wide flange steel beam connects to a wide flange steel column flange using complete joint penetration groove welds at the beam flanges and fillet welds at the web. ASTM A572 Grade 50 cap plates and continuity plates match the thickness of the thickest welded beam flange plus one-eighth inch and match the width of the column. Weld access holes are provided at the top and bottom of the beam. Where no backspan occurs, a five-sixteenth inch complete joint penetration weld is specified at the web.

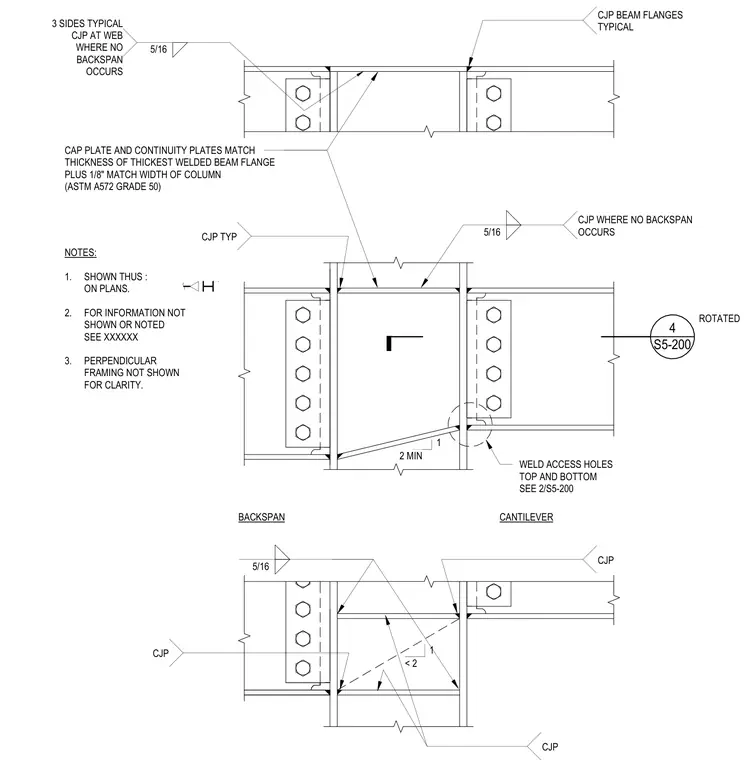

4 S5-200 CAP PLATE AND CONTINUITY PLATES MATCH THICKNESS OF THICKEST WELDED BEAM FLANGE PLUS 1/8" MATCH WIDTH OF COLUMN (ASTM A572 GRADE 50) NOTES: 1. SHOWN THUS : ON PLANS. 2. FOR INFORMATION NOT SHOWN OR NOTED SEE XXXXXX 3. PERPENDICULAR FRAMING NOT SHOWN FOR CLARITY. WELD ACCESS HOLES TOP AND BOTTOM SEE 2/S5-200 CJP BEAM FLANGES TYPICAL CJP TYP 5/16 3 SIDES TYPICAL CJP AT WEB WHERE NO BACKSPAN OCCURS 5/16 CJP WHERE NO BACKSPAN OCCURS BACKSPAN CANTILEVER 1 2 MIN 1 < 2 CJP CJP 5/16 ROTATED CJP
