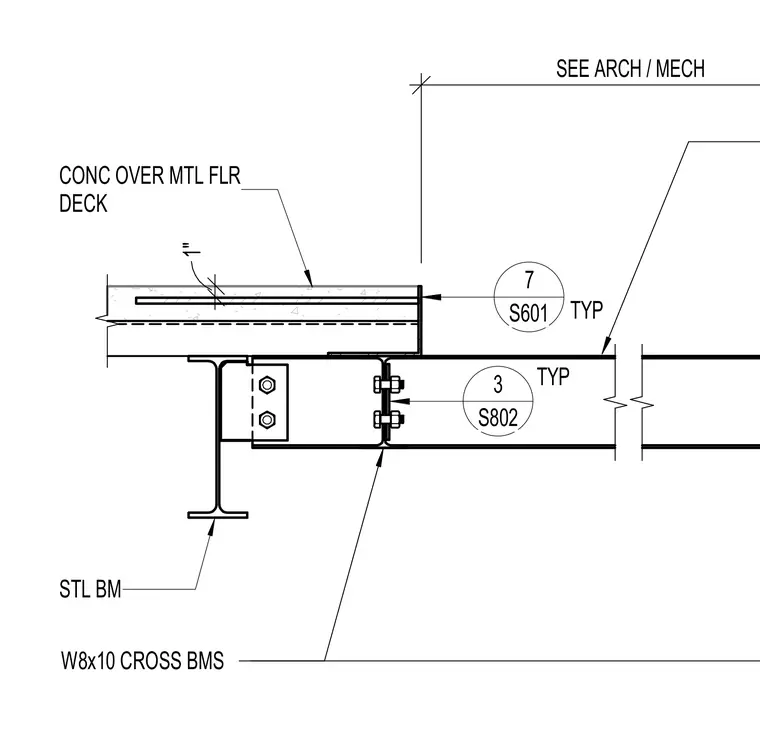

A concrete slab over metal floor deck bears on a structural steel beam. W8x10 cross beams connect to the framing with bolted web connections. Clearances and coordination are verified per architectural and mechanical drawings.
CONC OVER MTL FLR DECK STL BM W8x10 CROSS BMS 1" 7 S601 SEE ARCH / MECH TYP TYP 3 S802
