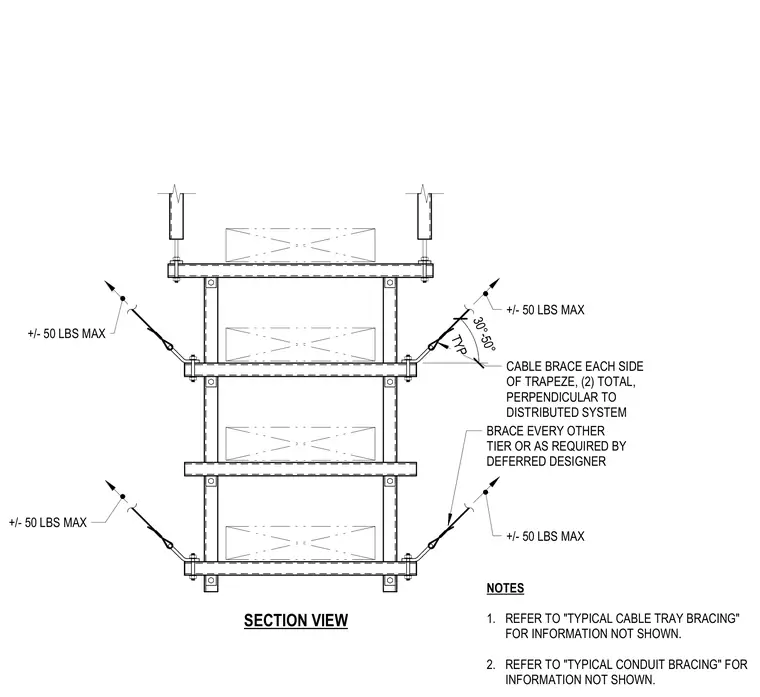

Cable braces are installed on each side of the multi-tier trapeze hanger, providing two total braces perpendicular to the distributed system. The diagonal braces are oriented at thirty to fifty degrees and installed on every other tier or as required by the deferred designer. Each brace supports a maximum load of plus or minus fifty pounds. Additional guidance refers to typical cable tray and conduit bracing details for omitted information.
SECTION VIEW CABLE BRACE EACH SIDE OF TRAPEZE, (2) TOTAL, PERPENDICULAR TO DISTRIBUTED SYSTEM TYP 30°-50° BRACE EVERY OTHER TIER OR AS REQUIRED BY DEFERRED DESIGNER NOTES 1. REFER TO "TYPICAL CABLE TRAY BRACING" FOR INFORMATION NOT SHOWN. 2. REFER TO "TYPICAL CONDUIT BRACING" FOR INFORMATION NOT SHOWN. +/- 50 LBS MAX +/- 50 LBS MAX +/- 50 LBS MAX +/- 50 LBS MAX
