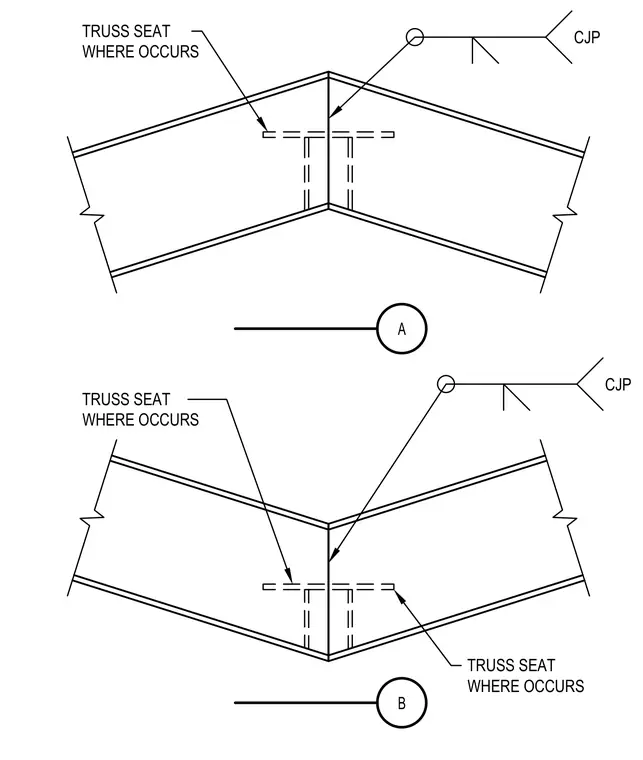

Two structural members meet at a ridge or slope break and connect via a complete joint penetration weld along the top joint interface. A truss seat is installed where indicated by the layout to support the framing members. The connection maintains alignment across the angular transition.
A B TRUSS SEAT WHERE OCCURS TRUSS SEAT WHERE OCCURS CJP CJP TRUSS SEAT WHERE OCCURS
