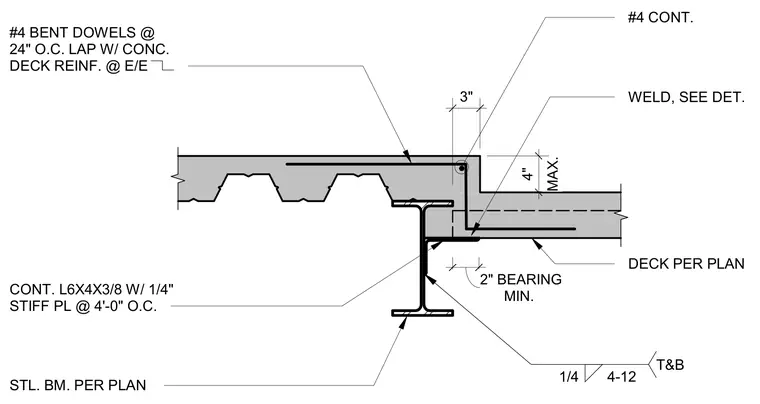

A concrete deck bears on a structural steel beam sized per plan with a minimum two-inch bearing length on a continuous L6x4x3/8 angle. The angle features one-quarter-inch stiffener plates spaced at four feet on center top and bottom, welded with one-quarter-inch welds at four to twelve inches. Number four continuous rebar and number four bent dowels at twenty-four inches on center lap with the concrete deck reinforcement at each end.
STL. BM. PER PLAN #4 BENT DOWELS @ 24" O.C. LAP W/ CONC. DECK REINF. @ E/E #4 CONT. 3" MAX. 4" WELD, SEE DET. DECK PER PLAN MIN. 2" BEARING CONT. L6X4X3/8 W/ 1/4" STIFF PL @ 4'-0" O.C. T&B 1/4 4-12
