Structural · S-PKZ9R

New Concrete Wall Connection to Existing Concrete Slab and Steel Beam

Materials

Concrete Reinforced Concrete Steel

Elements

Beams Walls Floors / Slabs Anchors / Embeds Reinforcing

Connections

Welded Connection Rebar Splice / Development Embed Plate

About this detail

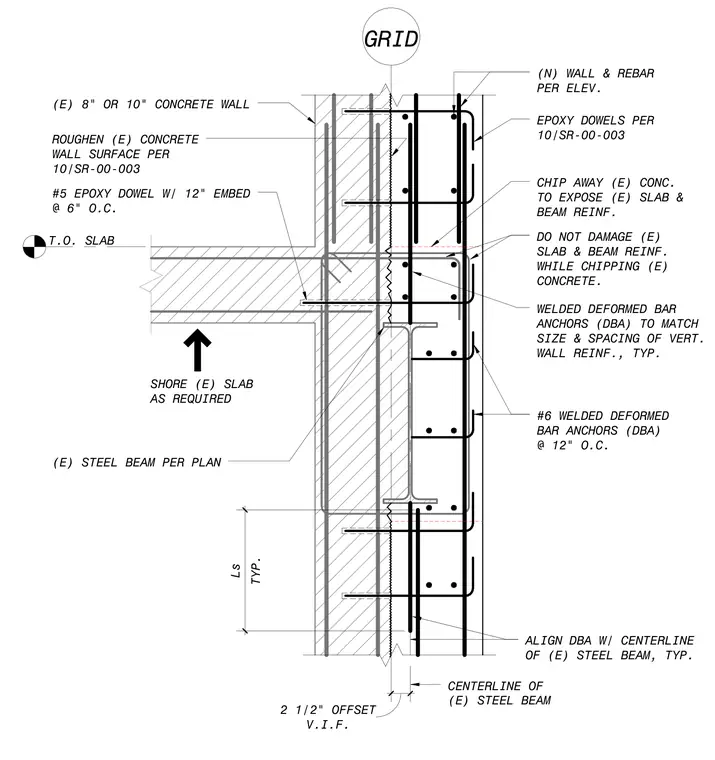

A new concrete wall connects to an existing concrete wall, slab, and steel beam assembly. The existing concrete wall surface is roughened and receives number 5 epoxy dowels with a twelve-inch embedment at six inches on center, alongside vertical and horizontal reinforcing. The existing concrete is chipped away to expose existing slab and beam reinforcement without causing damage, while the existing slab is shored as required. A steel beam per plan is aligned with welded deformed bar anchors matching the size and spacing of the vertical wall reinforcement, set with a two-and-a-half-inch offset.
