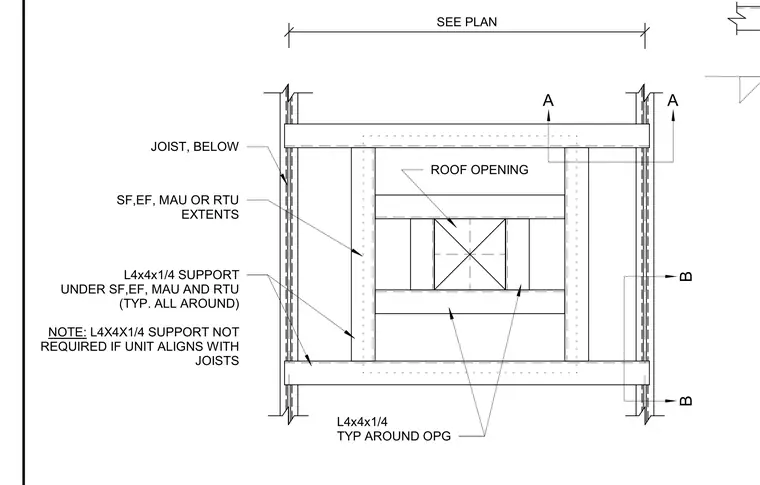

Structural support for roof openings accommodating supply fans, exhaust fans, makeup air units, or rooftop units consists of L4x4x1/4 steel angles installed around the perimeter of the opening to provide bearing for the equipment. These support angles are required unless the mechanical unit aligns directly with the primary roof joists. The framing is positioned between existing joists, with the specific opening dimensions determined per the architectural or mechanical plan.
Text on the drawing
B B A A SEE PLAN ROOF OPENING L4x4x1/4 SUPPORT UNDER SF,EF, MAU AND RTU (TYP. ALL AROUND) NOTE: L4X4X1/4 SUPPORT NOT REQUIRED IF UNIT ALIGNS WITH JOISTS L4x4x1/4 TYP AROUND OPG SF,EF, MAU OR RTU EXTENTS JOIST, BELOW
