A channel stringer connects to a wide flange column using an L7x4x3/8 angle welded with three-sixteenths inch fillet welds. The assembly ties into the structural column sized per the steel column schedule. Dimensions and specific layout are coordinated with the stair plan.

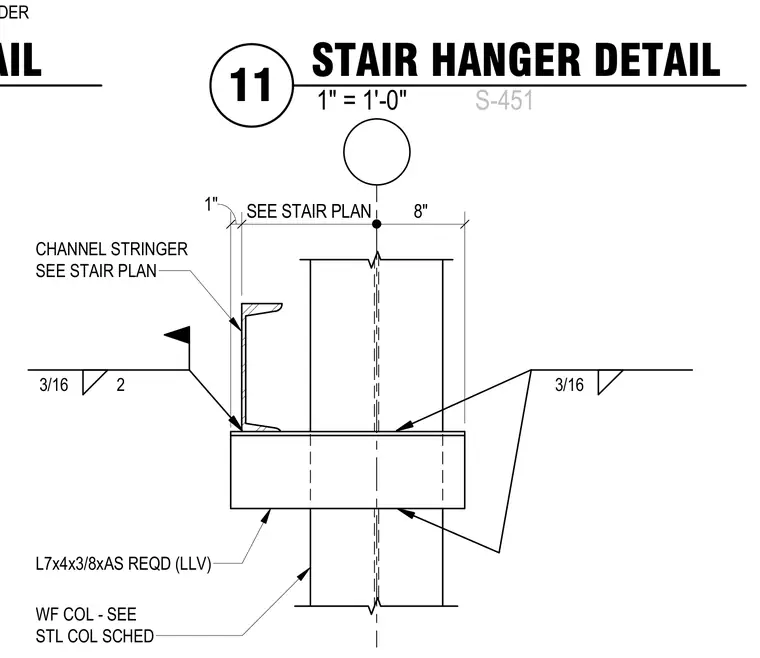

(1) 5/8"Ø A325-N BOLTS EACH SIDE OF HEADER 1" SEE STAIR PLAN 8" 3/16 2 3/16 CHANNEL STRINGER SEE STAIR PLAN L7x4x3/8xAS REQD (LLV) WF COL - SEE STL COL SCHED CONNECTION DETAIL 1" = 1'-0" S-451 11 STAIR HANGER DETAIL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
