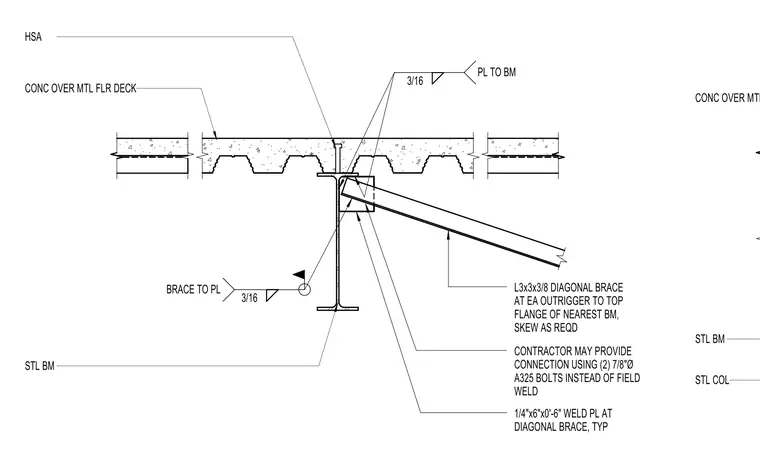

A diagonal kicker brace constructed from a L3x3x3/8 angle connects to the top flange of a steel beam supporting a concrete over metal floor deck. A quarter-inch by six-inch by zero-foot-six-inch weld plate connects to the diagonal brace and is secured with three-sixteenth-inch fillet welds. The contractor may provide an alternate connection using two seven-eighths-inch diameter A325 bolts instead of the field weld connecting the plate to the beam. The structural layout accommodates required skew at each outrigger framing into the nearest steel beam.
1/4"x6"x0'-6" WELD PL AT DIAGONAL BRACE, TYP L3x3x3/8 DIAGONAL BRACE AT EA OUTRIGGER TO TOP FLANGE OF NEAREST BM, SKEW AS REQD STL BM CONC OVER MTL FLR DECK HSA CONTRACTOR MAY PROVIDE CONNECTION USING (2) 7/8"Ø A325 BOLTS INSTEAD OF FIELD WELD 3/16 PL TO BM 3/16 BRACE TO PL STL COL STL BM CONC OVER MTL FLR DECK
