Structural · S-PKP3B

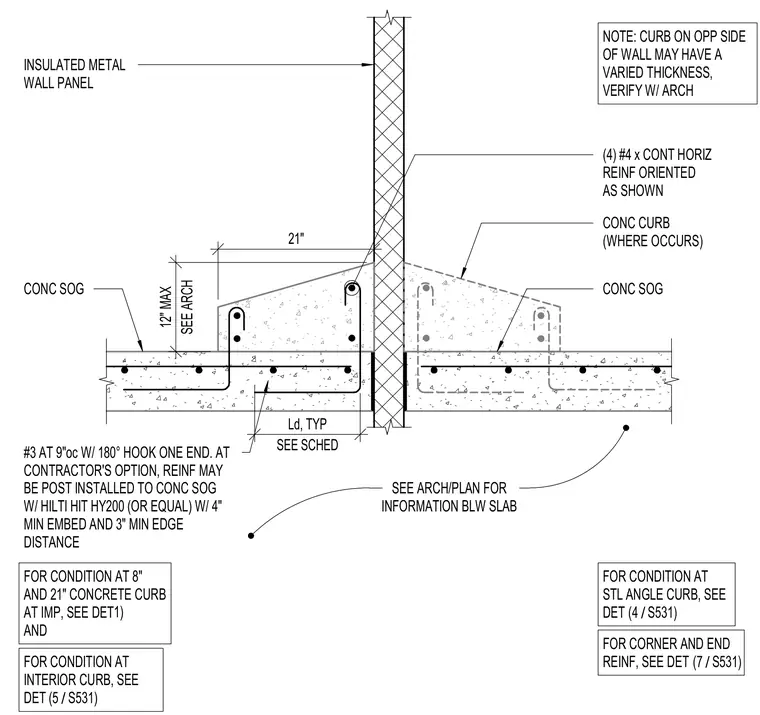

Typical Insulated Metal Panel Base Detail at 21 Inch Concrete Curb

Materials

Concrete Steel Metal (misc.)

Elements

Columns Walls Floors / Slabs Arches Site / Paving Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development Embed Plate

About this detail

An insulated metal panel wall bears upon a twenty-one inch concrete curb cast monolithically with or adjacent to a concrete slab-on-grade. The slab-on-grade is reinforced with number three bars spaced at nine inches on center with one-hundred-eighty-degree hooks at one end, with an option for post-installed reinforcement using Hilti HIT-HY200 adhesive anchors with a four-inch minimum embedment and three-inch minimum edge distance. Four continuous number four horizontal reinforcing bars are positioned within the curb assembly as shown. The insulated metal panel rises from the top of the curb, and notes direct coordination with architectural drawings for conditions below the slab, at interior curbs, at eight-inch curbs, and at steel angle curb conditions.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
