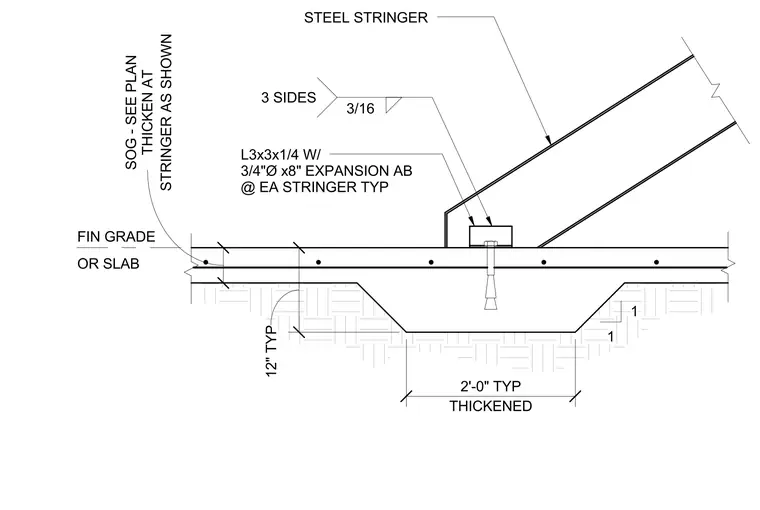

A steel stringer bears on a concrete slab on grade featuring a thickened footing that is two feet wide typically. An L3x3x1/4 angle connects the stringer to the slab using a three-quarter-inch diameter by eight-inch expansion anchor bolt at each stringer typically. A three-sixteenths-inch fillet weld is applied to three sides of the stringer as shown.
OR SLAB FIN GRADE THICKENED 2'-0" TYP 12" TYP 1 1 STEEL STRINGER L3x3x1/4 W/ 3/4"Ø x8" EXPANSION AB @ EA STRINGER TYP 3/16 3 SIDES STRINGER AS SHOWN SOG - SEE PLAN THICKEN AT
