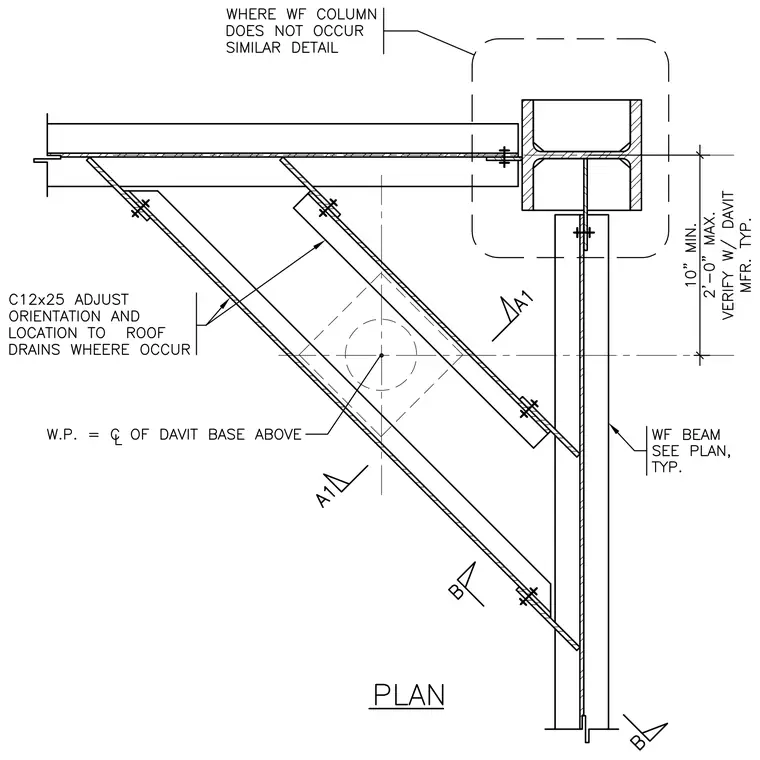

A C12x25 channel brace connects to a wide-flange beam sized per plan, with orientation and location adjusted where roof drains occur. The work point aligns with the centerline of the davit base above, maintaining a ten-inch minimum to two-foot maximum dimension verified with the davit manufacturer. A similar detail applies where the wide-flange column does not occur.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
