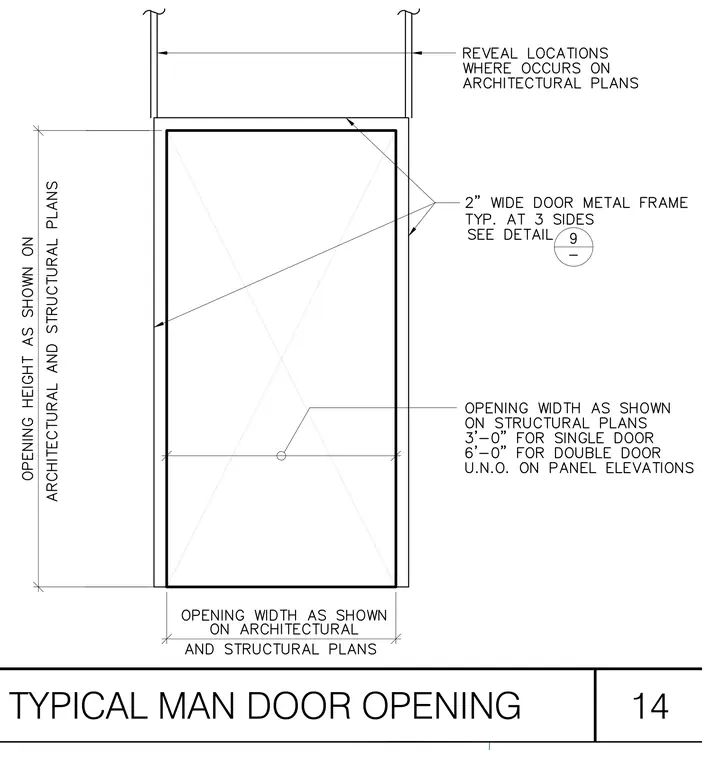

A standard two-inch wide door metal frame is detailed typically at three sides. Opening widths are specified as three feet zero inches for single doors and six feet zero inches for double doors unless noted otherwise on panel elevations. Reveal locations are coordinated per architectural plans.
