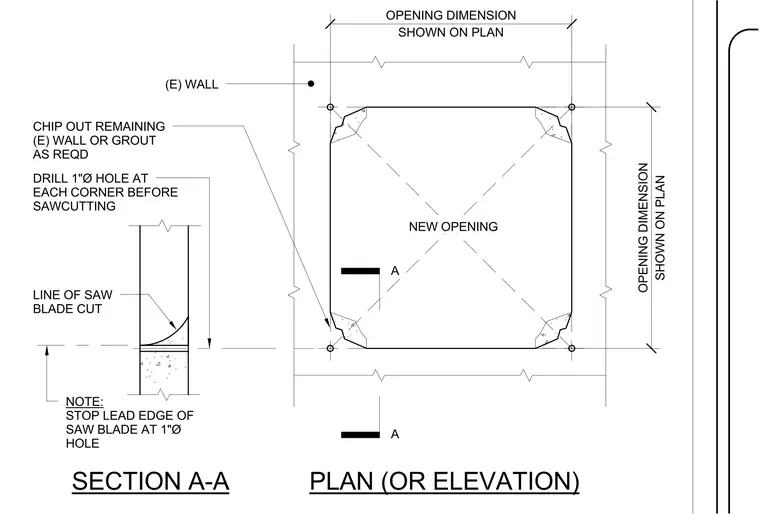

Cutting a new opening in an existing wall to prevent overcutting at the corners requires a one-inch diameter hole drilled at each corner of the planned opening prior to sawcutting. The lead edge of the saw blade must stop at the one-inch diameter hole. Any remaining existing wall material at the corners is chipped out or grouted as required.
A A PLAN (OR ELEVATION) SECTION A-A NEW OPENING DRILL 1"Ø HOLE AT EACH CORNER BEFORE SAWCUTTING LINE OF SAW BLADE CUT CHIP OUT REMAINING (E) WALL OR GROUT AS REQD NOTE: STOP LEAD EDGE OF SAW BLADE AT 1"Ø HOLE (E) WALL SHOWN ON PLAN OPENING DIMENSION SHOWN ON PLAN OPENING DIMENSION
