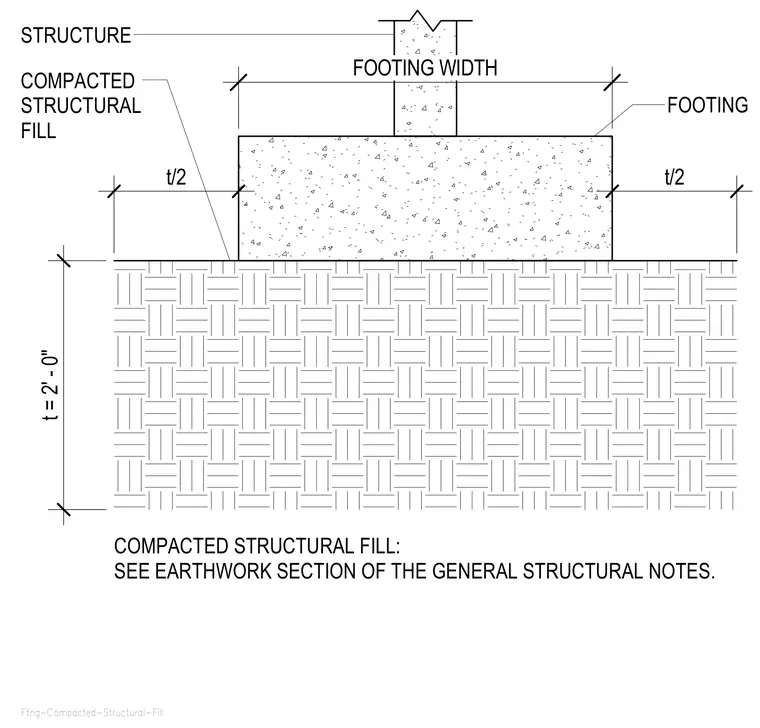

A concrete footing rests on a bed of compacted structural fill. The footing width is centered over the fill, extending by a distance equal to half the footing thickness on each side. The thickness of目 the structural fill layer beneath the footing is specified as two feet. Specifications for the compacted structural fill refer to the earthwork section of the general structural notes.
STRUCTURE COMPACTED STRUCTURAL FILL FOOTING COMPACTED STRUCTURAL FILL: SEE EARTHWORK SECTION OF THE GENERAL STRUCTURAL NOTES. Ftng-Compacted-Structural-Fill FOOTING WIDTH t = 2' - 0" t/2 t/2
