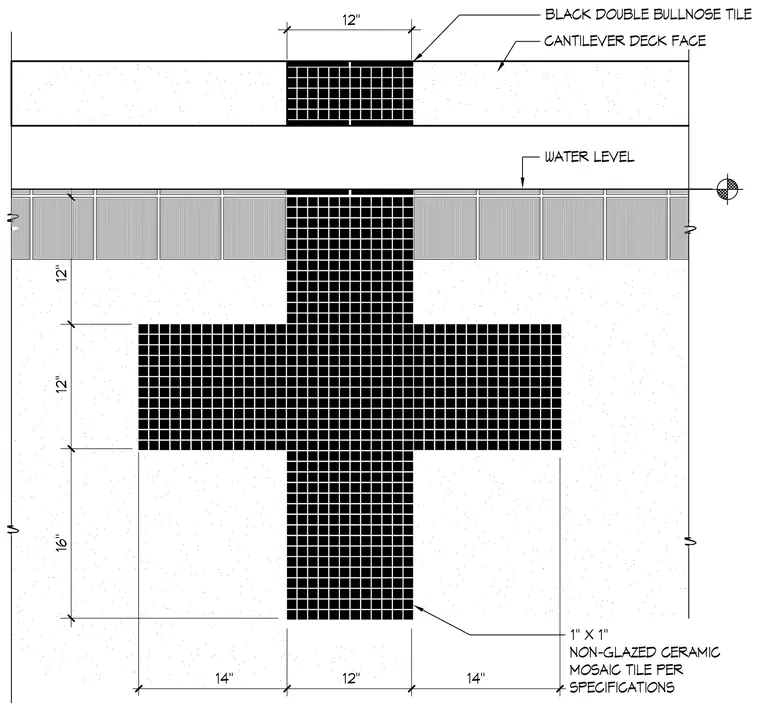

A cantilever deck face is finished with black double bullnose tile positioned at the water level. Below the waterline, the assembly incorporates one-inch by one-inch non-glazed ceramic mosaic tile applied per specifications. Dimensioned spacing outlines the tile pattern relative to the deck edge and water surface.
WATER LEVEL BLACK DOUBLE BULLNOSE TILE 12'' 12'' 12'' 16'' 14'' 14'' 12'' 1'' X 1'' NON-GLAZED CERAMIC MOSAIC TILE PER SPECIFICATIONS CANTILEVER DECK FACE
