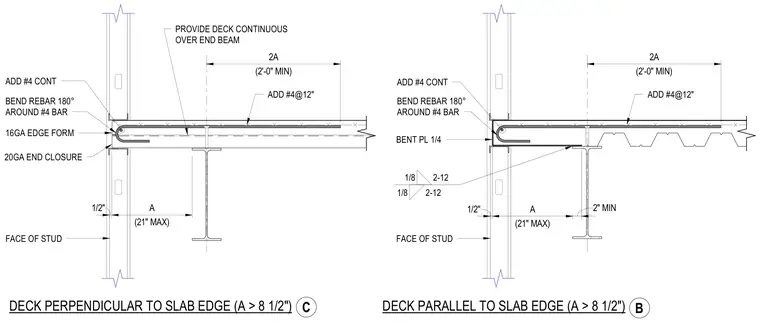

Reinforced concrete slab on metal deck bears over a structural steel beam near a stud wall. The slab edge is formed using a sixteen-gauge edge form and twenty-gauge end closure, with continuous number four rebar bent one hundred eighty degrees around a number four bar. Additional number four reinforcing bars are placed continuously and spaced at twelve inches on center. The metal deck runs perpendicular or parallel to the slab edge with a minimum two-foot extension over the end beam. A one-quarter-inch bent plate is welded with one-eighth-inch fillet welds at two-to-twelve spacing where the deck runs parallel to the slab edge.
BEND REBAR 180° AROUND #4 BAR 16GA EDGE FORM 20GA END CLOSURE BENT PL 1/4 ADD #4 CONT FACE OF STUD ADD #4@12" DECK PARALLEL TO SLAB EDGE (A > 8 1/2") DECK PERPENDICULAR TO SLAB EDGE (A > 8 1/2") FACE OF STUD ADD #4@12" BEND REBAR 180° AROUND #4 BAR ADD #4 CONT 1/2" (21" MAX) A 2" MIN 1/2" (21" MAX) A PROVIDE DECK CONTINUOUS OVER END BEAM (2'-0" MIN) 2A (2'-0" MIN) 2A 1/8 2-12 1/8 2-12 B C
