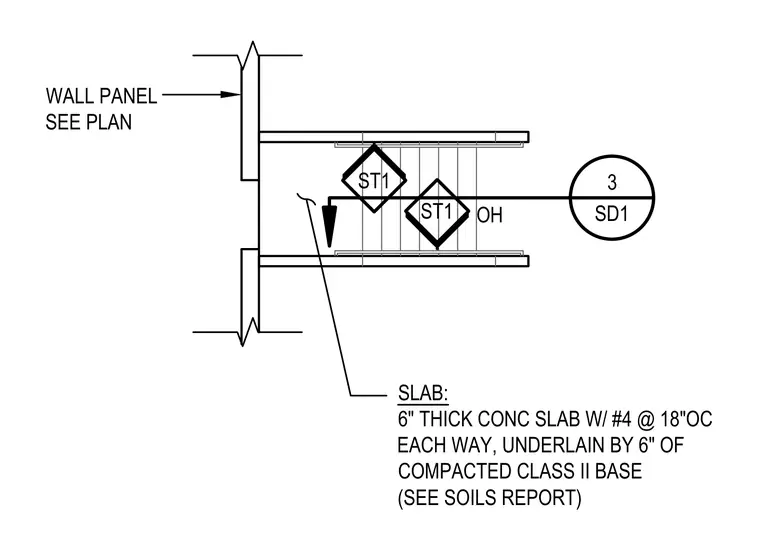

A six-inch thick concrete slab is reinforced with number four bars at eighteen inches on center each way. The slab is underlain by six inches of compacted Class II base per the soils report. The slab interfaces with a wall panel sized per plan.
SLAB: 6" THICK CONC SLAB W/ #4 @ 18"OC EACH WAY, UNDERLAIN BY 6" OF COMPACTED CLASS II BASE (SEE SOILS REPORT) ST1 ST1 OH 3 SD1 WALL PANEL SEE PLAN
