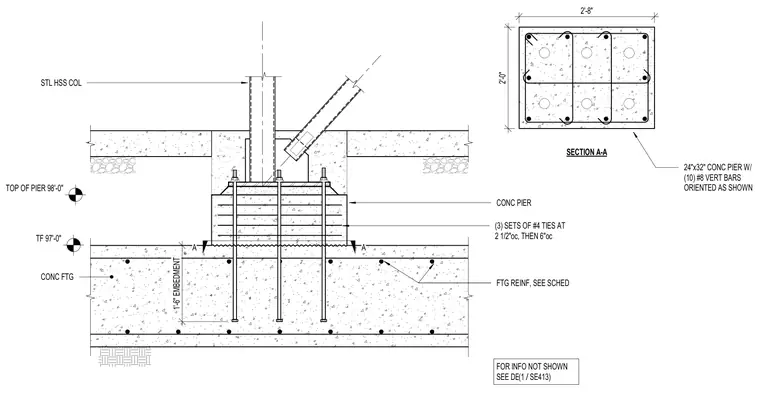

A steel hollow structural section column and a diagonal brace connect to a base assembly anchored into a concrete pier. The twenty-four by thirty-two inch concrete pier contains ten number eight vertical bars with three sets of number four ties spaced at two and a half inches on center, transitioning to six inches on center. The pier sets into a concrete footing with footing reinforcement sized per the schedule and an embedment depth of one foot six inches. Anchor bolts secure the base plate into the foundation assembly.
A A CONC FTG STL HSS COL FTG REINF, SEE SCHED CONC PIER FOR INFO NOT SHOWN SEE DET / (1 SE413) 1'-6" EMBEDMENT TOP OF PIER 98'-0" TF 97'-0" SECTION A-A 24"x32" CONC PIER W/ (10) #8 VERT BARS ORIENTED AS SHOWN 2'-8" 2'-0" (3) SETS OF #4 TIES AT 2 1/2"oc, THEN 6"oc
