An aluminum beam per plan frames into an aluminum angle ledger, with continuous spacing governed by a maximum two-foot spacing. One-quarter-inch thick aluminum stiffener plates are spaced at twenty-four inches on center and welded three sides with three-sixteenth-inch fillet welds. Three-quarter-inch diameter by eight-inch embedded stainless steel anchor bolts secure the connection, complemented by an L6x4x1/2 aluminum angle.

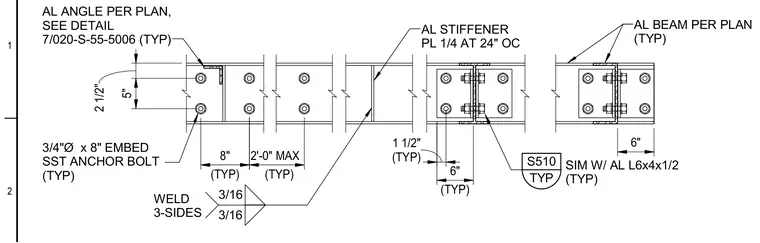

TYP S510 SIM W/ AL L6x4x1/2 (TYP) AL BEAM PER PLAN (TYP) 6" (TYP) 6" (TYP) 1 1/2" AL STIFFENER PL 1/4 AT 24" OC (TYP) 8" 3/4"Ø x 8" EMBED SST ANCHOR BOLT (TYP) 5" 2 1/2" AL ANGLE PER PLAN, SEE DETAIL 7/020-S-55-5006 (TYP) 3/16 3/16 WELD 3-SIDES (TYP) 2'-0" MAX 2 1
