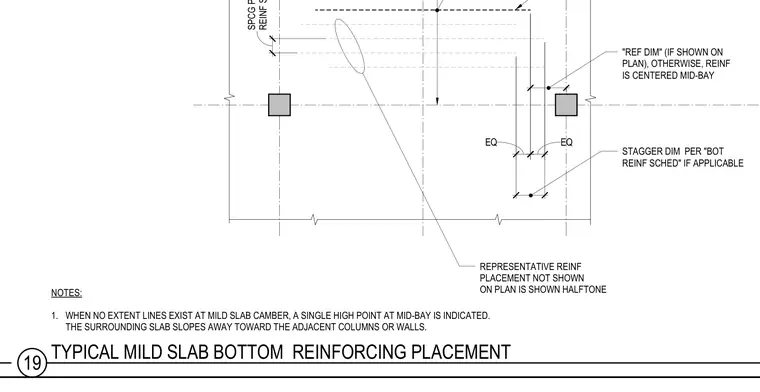

Typical mild slab bottom reinforcing placement between supporting columns. When no extent lines exist at mild slab camber, a single high point at mid-bay is indicated with the surrounding slab sloping away toward adjacent columns or walls. Representative reinforcing placement not shown on the plan is shown halftone, otherwise reinforcing is centered mid-bay. Spacing and stagger dimensions follow the bottom reinforcing schedule where applicable.
STAGGER DIM PER "BOT REINF SCHED" IF APPLICABLE NOTES: 1. WHEN NO EXTENT LINES EXIST AT MILD SLAB CAMBER, A SINGLE HIGH POINT AT MID-BAY IS INDICATED. THE SURROUNDING SLAB SLOPES AWAY TOWARD THE ADJACENT COLUMNS OR WALLS. REPRESENTATIVE REINF PLACEMENT NOT SHOWN ON PLAN IS SHOWN HALFTONE "REF DIM" (IF SHOWN ON PLAN), OTHERWISE, REINF IS CENTERED MID-BAY 24" EQ 12" EQ 30" SPCG PER "BOT REINF SCHED" 19 TYPICAL MILD SLAB BOTTOM REINFORCING PLACEMENT
