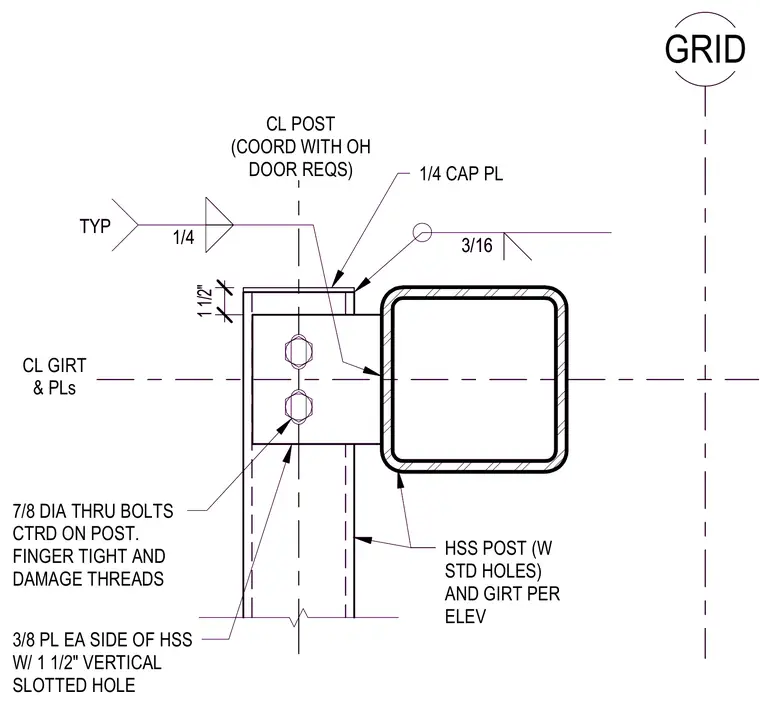

An overhead door girt connects to an HSS post using three-eighths-inch plates welded to each side of the HSS section with a quarter-inch fillet weld. Seven-eighths-inch diameter through bolts centered on the post pass through one-and-a-half-inch vertical slotted holes to accommodate movement. The assembly includes a quarter-inch cap plate welded to the top of the post with a three-sixteenths-inch fillet weld. Bolts are installed finger tight and thread-damaged to allow slip. The HSS post and girt sizes follow the elevations.
3/8 PL EA SIDE OF HSS W/ 1 1/2" VERTICAL SLOTTED HOLE 7/8 DIA THRU BOLTS CTRD ON POST. FINGER TIGHT AND DAMAGE THREADS HSS POST (W STD HOLES) AND GIRT PER ELEV 1/4 TYP GRID CL GIRT & PLs 1/4 CAP PL 3/16 1 1/2" CL POST (COORD WITH OH DOOR REQS) 3/8 PL EA SIDE OF HSS W/ 1 1/2" VERTICAL SLOTTED HOLE 7/8 DIA THRU BOLTS CTRD ON POST. FINGER TIGHT AND DAMAGE THREADS HSS POST (W STD HOLES) AND GIRT PER ELEV 1/4 TYP GRID CL GIRT & PLs 1/4 CAP PL 3/16 1 1/2" CL POST (COORD WITH OH DOOR REQS)
