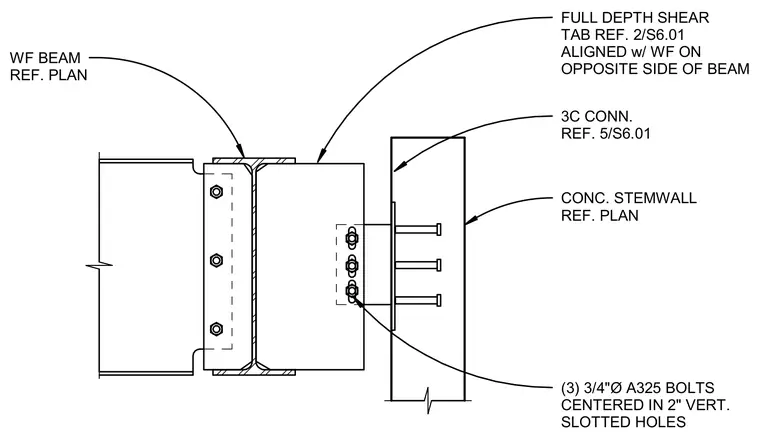

A wide-flange steel beam connects to a concrete stemwall using a full-depth shear tab aligned with a wide-flange beam on the opposite side. The connection is secured with three three-quarter-inch-diameter ASTM A325 bolts centered in two-inch vertical slotted holes. The assembly includes a dedicated connection plate embedded in the concrete stemwall as referenced in the structural drawings.
CONC. STEMWALL REF. PLAN 3C CONN. REF. 5/S6.01 FULL DEPTH SHEAR TAB REF. 2/S6.01 ALIGNED w/ WF ON OPPOSITE SIDE OF BEAM WF BEAM REF. PLAN (3) 3/4"Ø A325 BOLTS CENTERED IN 2" VERT. SLOTTED HOLES
