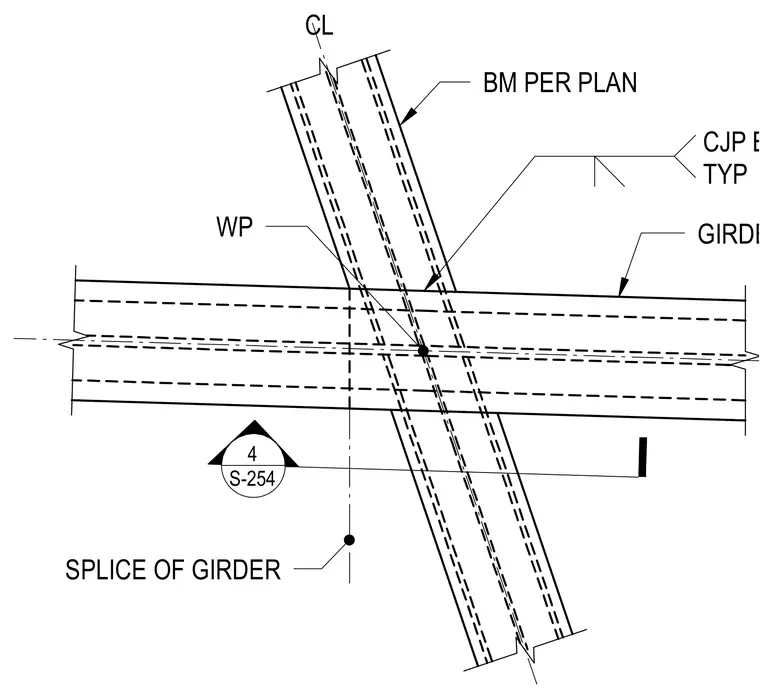

A welded splice connection for steel framing members utilizes complete joint penetration groove welds on the beam flanges, typically designated at the work point along the center line. Members are sized per plan to maintain continuity across the framing layout.
