A wide flange beam connects to a supporting member using a one-half inch shear tab welded with five-sixteenths fillet welds. Three-eighths by nine-inch plate stiffeners align with the shear tab and are welded with five-sixteenths fillet welds. A five-inch return weld is applied at the top and bottom. Floor and roof deck are omitted per reference plan and details.

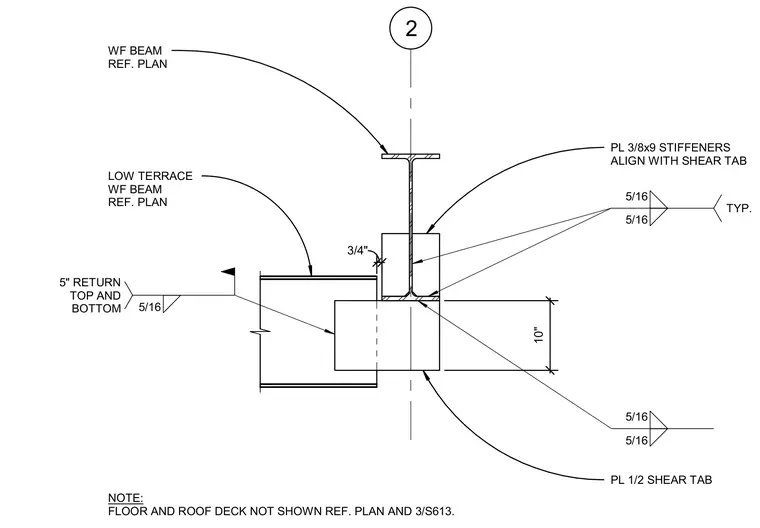

2 10" 3/4" PL 3/8x9 STIFFENERS ALIGN WITH SHEAR TAB 5/16 5/16 TYP. 5/16 5/16 PL 1/2 SHEAR TAB WF BEAM REF. PLAN LOW TERRACE WF BEAM REF. PLAN 5/16 5" RETURN TOP AND BOTTOM NOTE: FLOOR AND ROOF DECK NOT SHOWN REF. PLAN AND 3/S613.
