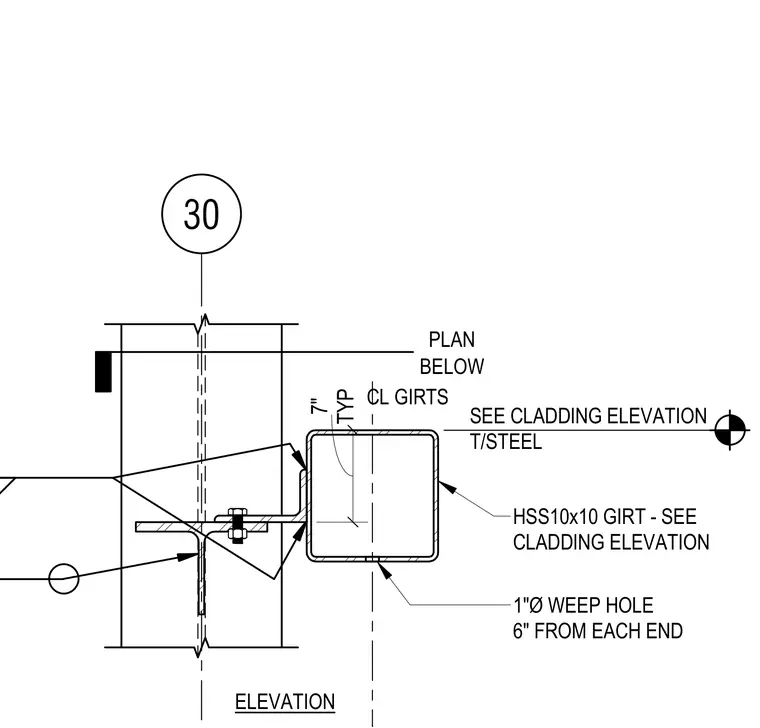

An HSS10x10 hollow structural section girt is supported by a structural assembly with an angle connection. One-inch diameter weep holes are located six inches from each end of the girt. Centerline dimensions are detailed relative to the cladding elevation.
SEE CLADDING ELEVATION T/STEEL HSS10x10 GIRT - SEE CLADDING ELEVATION 1"Ø WEEP HOLE 6" FROM EACH END BELOW PLAN TYP 7" ELEVATION 30 CL GIRTS
