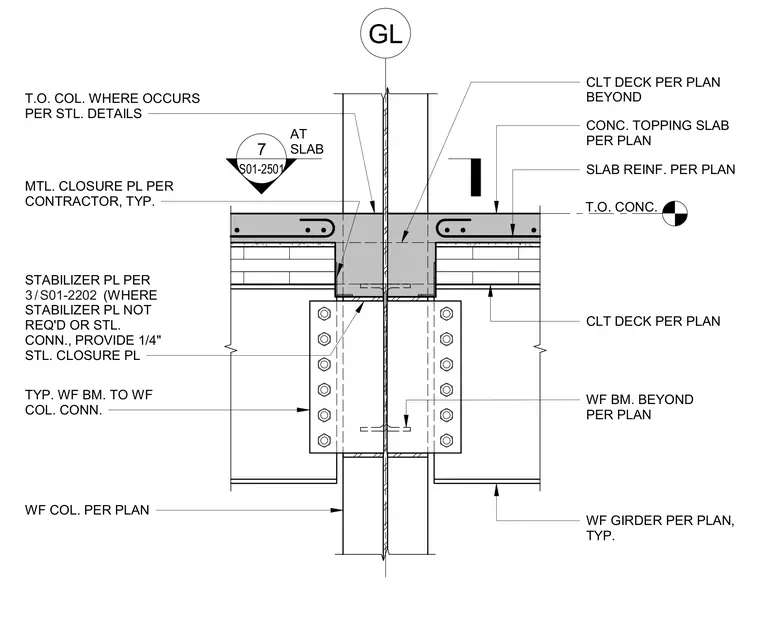

An interior wide flange column supports wide flange beams connecting via standard wide flange beam-to-column connections. A cross-laminated timber deck spans beyond the beam, topped with a concrete topping slab containing slab reinforcement sized per plan. A stabilizer plate is provided per detail 3/S01-2202, or a one-quarter-inch steel closure plate is used where the stabilizer plate is not required or for steel connections. A metal closure plate is provided by the contractor typically at the slab edge.
GL WF BM. BEYOND PER PLAN T.O. CONC. CONC. TOPPING SLAB PER PLAN CLT DECK PER PLAN WF COL. PER PLAN WF GIRDER PER PLAN, TYP. STABILIZER PL PER (WHERE STABILIZER PL NOT REQ'D OR STL. CONN., PROVIDE 1/4" STL. CLOSURE PL TYP. WF BM. TO WF COL. CONN. SLAB REINF. PER PLAN 1 S01-2501 AT SLAB MTL. CLOSURE PL PER CONTRACTOR, TYP. CLT DECK PER PLAN BEYOND T.O. COL. WHERE OCCURS PER STL. DETAILS / 3 S01-2202 7
