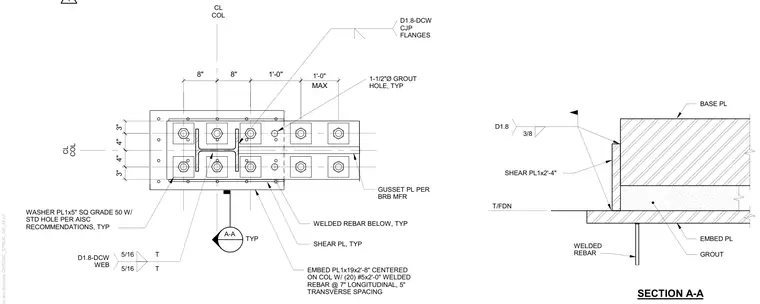

A buckling-restrained braced frame column base plate connection is oriented on the strong axis. The assembly features a heavy embed plate measuring 1 inch by 19 inches by 2 feet 8 inches, centered on the column with twenty number 5 by 2-foot welded rebar placed at 7-inch longitudinal and 5-inch transverse spacings below. The column flanges connect via complete joint penetration welds, while the web utilizes 5/16-inch fillet welds top and bottom. A gusset plate provided per the buckling-restrained brace manufacturer ties into the connection along with typical shear plates and a 1-1/2-inch diameter grout hole. Square Grade 50 washer plates measuring 1 inch by 5 inches are installed with standard holes per AISC recommendations.
T/FDN A-A CL COL CL COL WELDED REBAR SHEAR PL1x2'-4" 3/8 D1.8 GROUT SECTION A-A EMBED PL BASE PL 8" 8" 1'-0" MAX 4" 4" 5/16 T 5/16 T D1.8-DCW WEB D1.8-DCW CJP FLANGES WASHER PL1x5" SQ GRADE 50 W/ STD HOLE PER AISC RECOMMENDATIONS, TYP EMBED PL1x19x2'-8" CENTERED ON COL W/ (20) #5x2'-0" WELDED REBAR @ 7" LONGITUDINAL, 5" TRANSVERSE SPACING WELDED REBAR BELOW, TYP 1-1/2"Ø GROUT HOLE, TYP GUSSET PL PER BRB MFR TYP SHEAR PL, TYP 1'-0" 3" 3" 1
