Structural · S-PH2ZW

Foundation Wall and Slab Transition Detail

Materials

Concrete Masonry / CMU

Elements

Walls Floors / Slabs Arches Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

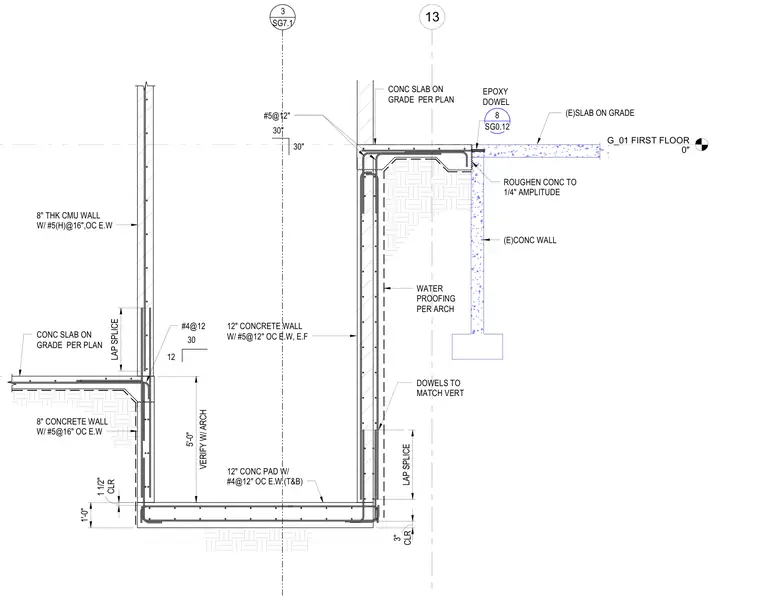

A structural connection joins a concrete foundation wall, concrete pad, slab on grade, and an eight-inch thick concrete masonry unit wall. The foundation assembly features a twelve-inch concrete wall reinforced with number five bars at twelve inches on center each way, each face, set upon a twelve-inch concrete pad reinforced with number four bars at twelve inches on center each way top and bottom. A waterproofing layer is applied per the architect's specifications along the exterior face of the foundation wall. An existing concrete wall connects to an existing slab on grade with epoxy dowels and a roughened concrete surface to a quarter-inch amplitude. Lap splices are detailed for vertical reinforcing bars with thirty-inch lap lengths, and dowels match the vertical number five bars at twelve inches on center.
