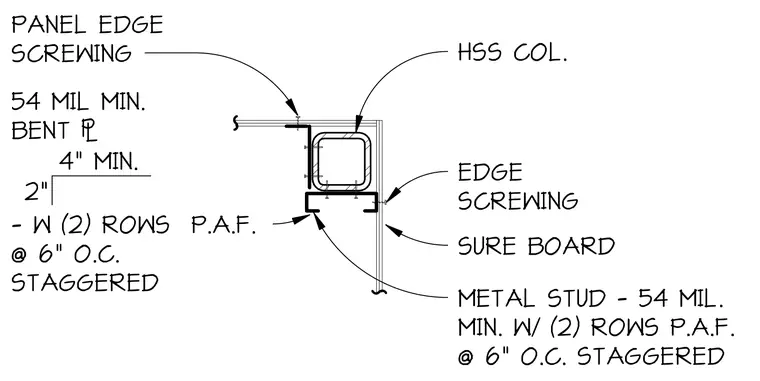

A hollow structural section steel column ties into perpendicular shear walls formed by cold-formed metal studs and Sure-Board sheathing. A minimum fifty-four mil bent plate connects the assembly with panel edge screwing. Powder-actuated fasteners are installed in two staggered rows at six inches on center. Additional edge screwing secures the Sure-Board panel directly to the metal stud framing.
PANEL EDGE SCREWING 54 MIL MIN. BENT 3 4" MIN. 2" - W (2) ROWS P.A.F. @ 6" O.C. STAGGERED HSS COL. EDGE SCREWING SURE BOARD METAL STUD - 54 MIL. MIN. W/ (2) ROWS P.A.F. @ 6" O.C. STAGGERED
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
